AES/EBU (Audio Engineering Society/European Broadcasting Union) routing is a method used in professional audio environments for transmitting digital audio signals. It is based on the AES/EBU standard which defines a way to carry digital audio data in a balanced format over XLR connectors, commonly used in studio and broadcast applications. Here’s a description of AES/EBU routing:

1. Digital Audio Transmission: AES/EBU transmits audio data in a digital format, allowing for high quality sound reproduction without the noise and signal degradation associated with analog cables. It supports multichannel audio and is widely used for stereo digital audio signals but can accommodate multichannel formats depending on the implementation.
2. Physical Layer: The standard typically uses an XLR3 connector for the transmission line, which is a balanced connection that helps minimize electromagnetic interference and maintains audio signal integrity.
3. Data Format: The AES/EBU format transmits audio samples along with ancillary data such as channel status information and user bits, which can be used for various purposes including metadata about the audio stream.

Routing in AES/EBU

1. Signal Routing: Routing refers to the process of directing audio signals from one device to another within a setup, such as through digital patch bays, mixers, and processors. In an AES/EBU setup, audio signals can be routed between digital audio interfaces, digital mixing consoles, and digital effects processors with ease.
2. Patch Bays: Digital patch bays or routers can be configured to allow flexible routing of AES/EBU signals, enabling users to change the audio paths without having to physically re-cable the connections. This is particularly useful for live sound environments or studios where multiple audio sources need to be managed efficiently.
3. Distribution: The AES/EBU routing system can manage multiple channels of audio and is capable of routing various formats, such as stereo and multichannel audio streams, for different applications. The use of routers and switches designed for AES/EBU can facilitate complex routing schemes needed in broadcasting and production environments.
4. Considerations: When routing AES/EBU signals, it’s important to ensure that the devices are compatible and properly configured for the audio sample rates and bit depths being used. Signal integrity should be monitored, as long cable runs may introduce jitter or attenuation if not properly managed.

Applications

AES/EBU routing is commonly used in:

• Recording Studios: For connecting digital audio workstations, audio interfaces, mixing consoles, and outboard gear.
• Broadcasting: For transmitting audio to and from radio and television stations, ensuring high fidelity and reliability.
• Live Sound: In concert venues where numerous audio signals need to be routed to and from various processors and amplifiers.

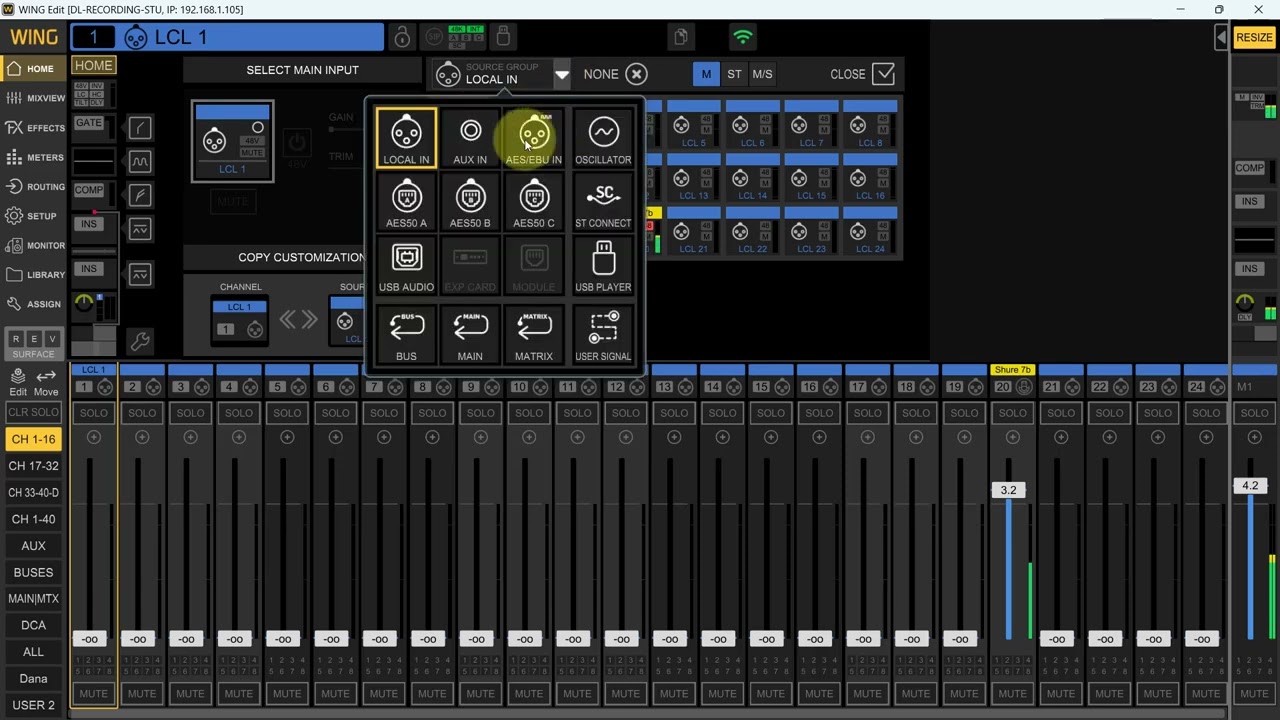

AES/EBU routing offers a reliable, high quality means of managing digital audio signals within various professional audio setups, promoting flexibility and efficiency in signal management. Please view the short video below.
